Product Details:
|
| Model NO.: | SX3315DT366 | Drive Wheel: | 8×4 |
|---|---|---|---|
| Engine Capacity: | ＞8L | Seats: | ≤5 |
| Horsepower: | 351-450hp | Tire Certification: | GCC, ISO, DOT |
| Tire Design: | Radial | Dumping Type: | Front Lifting Style |
| Condition: | New | Truck Model: | Sx3315dt366 |
| Capacity: | 40-50tons | Driving Wheel: | LHD/Rhd |
| Engine: | Wp12.380e32 | Horse Power: | 380HP,420HP |
| Fuel Tanker: | 300L | Transmission: | Fast 10jsd160t |
| Steering System: | Zf | Front Axle: | Man 9, 9tons Capacity |
| Rear Axle: | Man16 , 16tons Capacity, 2sets | Color: | Yellow, Red, White,Blue, Optional |
| Bucket Dimension: | 7600X2300X1500 27cbm | Lifting: | Front Lifting |
| Tyre: | 1200r20 Radial Tires,12+1spare | Cab: | F3000 Flat Roof Cab, One Sleeper With A/C |
| Transport Package: | Nude | Specification: | 10350x2490x3540mm |
| Trademark: | SHACMAN | Origin: | China |
| HS Code: | 87083093 | Supply Ability: | 50000/Year |
| After-sales Service: | Techinical&Spare Parts Support | Warranty: | One Year |
| Transmission Type: | Manual | Power: | Diesel |
| Load Capacity: | 41-50t | Emission Standard: | Euro 2 |
| Customization: | Available | Customized Request |

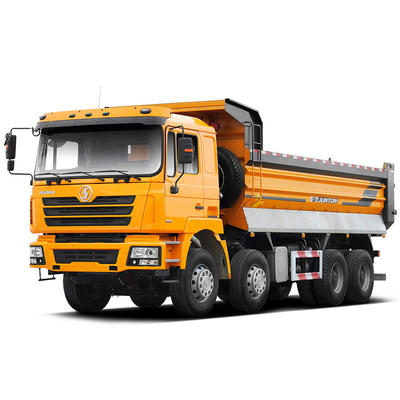

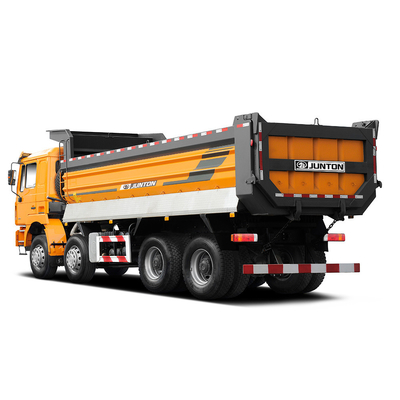

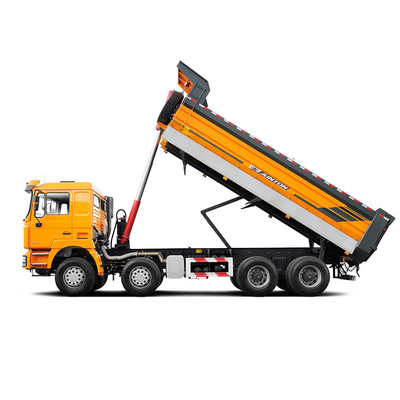

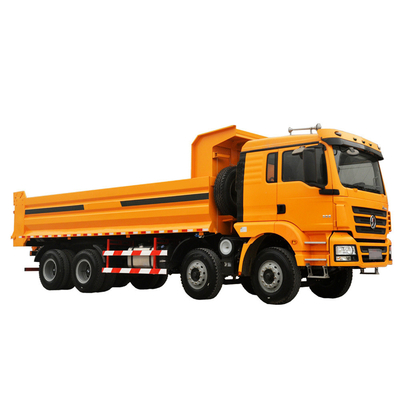

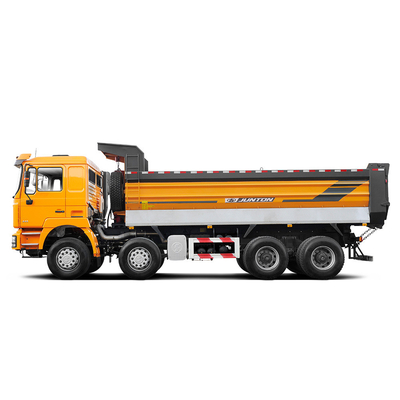

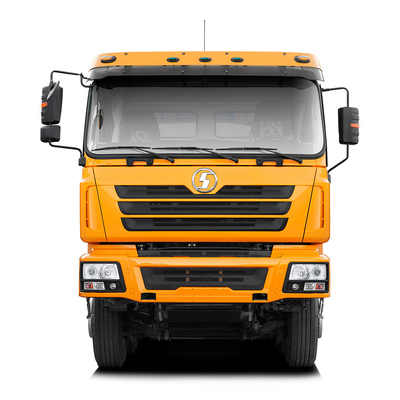

Shacman f2000 f3000 8x4 12 wheels used tipper dump truck
| Shacman f2000 f3000 8x4 12 wheels used tipper dump truck | ||||
| Truck Model | SX3315DT366 (LHD/RHD) | |||
| Truck Brand | SHACMAN F3000 | |||
| Dimension(Lx W x H)(unloaded)(mm) | 10350x2490x3540 | |||
| Cargo body size (L*W*H, mm) (mm) | 7600*2300*1500 | |||
| Cargo thickness(mm) | Bottom:8mm, Side:6mm | |||
| Lift type of Carriage | front side | |||
| Approaching angle/Departure angle(°) | 28/39 | |||
| Overhang(front/rear) (mm) | 1525/2050 | |||
| Wheel base (mm) | 3575+1400 | |||
| Max speed(km/h) | 80 | |||
| Curb weight(kg) | 14977 | |||
| Loading Weight(kg) | 31000 | |||
| Fuel tanker capacity(L) | 380L | |||
| Engine Model | Fuel type | Diesel | ||
| Horse Power | 380HP | |||
| Emission | EURO II | |||
| Model | WP12.380E32,water-cooled,four strokes,6 cylinders in line with water cooling , directly injection | |||
| Transmission | Model | 10JSD160T | ||
| Front axle | MAN 7.5 , Steering with double T-cross section beam | |||
| Rear axle | MAN16 Pressed axle housing, central double reduction with differential locks between axles and wheels | |||
| Color | optional | |||
| Tyre | 12.00R20 radial tires, 12+1pcs | |||
| Electrical system | Battery | 2X12V/165Ah | ||
| Alternator | 28V-1500kw | |||
| Starter | 7.5Kw/24V | |||
Main products
1. Shacman dump Truck / Tipper Truck
2. Hohan tractor Truck
3. Truck with crane / Truck mounted crane
4. Oil Tank Truck / Fuel Tanker Truck
5. Water truck / Water Tank Truck / Water Sprinkler Truck
6. Concrete Mixer Truck
7. Van truck / Insulated truck/ Refrigeration truck
8. Fecal suction truck / Sewage suction truck
9. Cement Powder Tank truck/ Bulk cement trailer
10. High-altitude operation truck
11.Semi Trailer ( flat bed trailer / skeleton trailer / dump trailer / side wall trailer / low bed trailer / container trailer, etc. )
Shipping method for Shacman f2000 f3000 8x4 12 wheels used tipper dump truck:
Usually Our Truck can be shipped by Ro-ro ship or Bulk ship or Flat rack container.
Packing Detail: Ro-Ro or Bulk base on the ship and port in your country. If the truck on the deck,we will spray antirust paint with free.
1. Q: What's your MOQ?
A: One unit trailer or truck.
2. Q: What is your lead time?
A: Usually it is 15-20 days after deposit received.
3. Q: What is the warranty of the trucks?
A: 12 months about engine, axle and transimission, some spare part can be 18 months. And we can help you solve every
problem about the truck by email and phone whole life.
4. Q: What's your payment terms?
A: T/T: 30% deposit by T/T,70% balance should be paid before shipment.
L/C: 100% irrevocable Credit of Letter.
5. Q:If Our Vehicle/Trailer Can Couple With Your Tractor Head ?
A:You can tell me that you are using the Tractor/Primer Mover model or the distance between fifth wheel and the ground,
we can design a height that matches your Tractor.
6. Q:If We Can Provide Terms For Reducing Your Import Duties ?
A:Yes, Please Contact With Us, We Are Nationalized Manufacture With Tax Reduction, Will Also Offer You The Best Way
For Import Duty Reduction.
7. Q: How about the after sales service?
A: We provide technical support and spare parts for long life time of our products.
