Product Details:
|
| Model NO.: | Mixer Truck | Payload: | 30T |
|---|---|---|---|
| Fuel: | Diesel | Drive Mode: | 6x4 |
| Maximum Horsepower: | 300-400hp | Condition: | New |
| Truck Model: | Zz1257n3841W | Dimension: | 8560X2496X3800mm |
| Capacity: | 40tons | Engine: | Wd615.47, D12.42 |
| Housepower: | 371HP, 380HP, 420HP | Emission: | Euro 2, Euro 4 |
| Cabin: | Hw76, One Sleeper, Air-Conditioner | Transmission: | Hw19710 |
| Drive Axle: | Hc16, Double Reduction | Front Axle: | Hf9, 9ton |
| Steering: | Zf8118 | Tyre: | 12.00r20 Radial |
| Mix Tank: | 6m3, 8m3, 9m3, 10m3 | Brand: | Sinotruk, Shacman, Dongfeng |
| Driving: | LHD/Rhd | Transport Package: | Nude |
| Specification: | 8560x2496x3800mm | Trademark: | Sinotruk |
| Origin: | China | HS Code: | 87054000 |
| Supply Ability: | 50000/Year | After-sales Service: | Techinical&Spare Parts Support |
| Warranty: | One Year | Certification: | ISO9000, CCC |
| Transmission Type: | Manual | Emission Standard: | Euro 4 |
| Displacement: | 9 | Customization: | Available | Customized Request |
| Product Parameter | More parameters | |
| Brand Name | SINOTRUK -HOWO | SHACMAN ,FAW |
| Truck Model | ZZ1257N3841W | / |
| Geometric Volume | 10 CBM | 6,8,9,10,12,14,16,18 |
| color | option | option |
| Water Tank Volume(L) | 400 | Water Tank Volume(L) |
| Engine | WD615.47, Euro 2 | Euro 3 ,Euro 4,Euro 5 |
| Wheel base (mm) | 3800+1350 | customization |
| Overall Dimension (mm) | 8560x2496x3048 | customization |
| Clutch | SINOTRUK's 430C diaphragm spring clutch, hydraulically operating with air assistance | |
| Transmission | HW19710, 10 forward and 2 reverse Ratio: 4.42 4.8 5.73 | |
| Front Axle | New HF9 series, with drum brake system | |
| Rear Axle | HC16 pressed axle housing, single reduction and differential locks between axles; with drum brake system. | |
| Steering | ZF8118, hydraulic steering with power assistance Ratio: 22.2-26.2:1 | |
| Wheels&Tyres | Rims: 8.5-20,10 hole-steel Types: 12.00R20 Option:12R22.4,12.00-24,12.00-20,13R22.5, 315/80R22.5, 295/80R22.5, 11.00R20 | |
| Driver'sCab | HW76 (one sleeper) all steel forward control, 55°hydraulic tilting to the front, 2-arm windscreen wiper system with 3 speeds, adjustable co-driver's seat, heating & ventilation system, with stereo radio/cassette recorder, sun visor, safety belt, air conditioner | |
| Cargo body | American Eaton pump and motor, Italian Bonfeili reducer, water tank 400L, head 8mm, tank 5mm, blade 4mm, vehicle spray wax, color consistent with the cab, front and rear lamp cover, other standard | |
Main products
1. Dump Truck / Tipper Truck
2. Howo tractor Truck/ prime mover truck
3. Truck with crane / Truck mounted crane
4. Oil Tank Truck / Fuel Tanker Truck
5. Water truck / Water Tank Truck / Water Sprinkler Truck
6. Concrete Mixer Truck
7. Van truck / Insulated truck/ Refrigeration truck
8. Fecal suction truck / Sewage suction truck
9. Cement Powder Tank truck/ Bulk cement trailer
10. High-altitude operation truck
11.Semi Trailer ( flat bed trailer / skeleton trailer / dump trailer / side wall trailer / low bed trailer / container trailer, etc. )

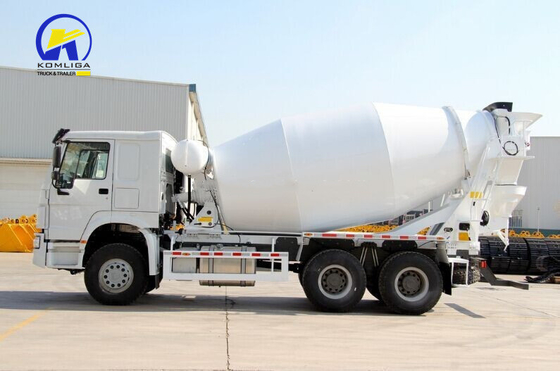

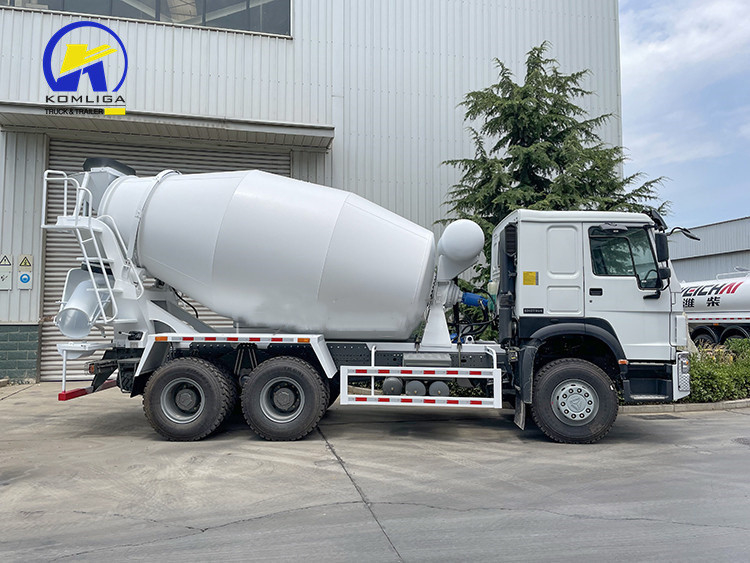

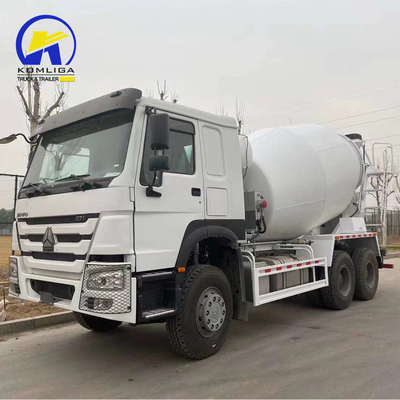

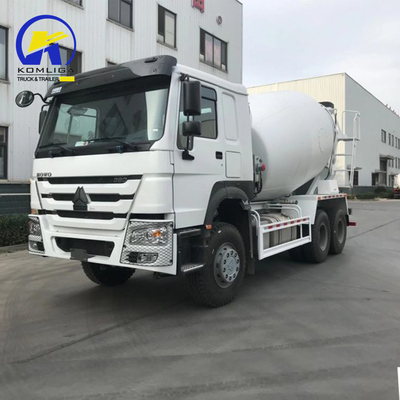

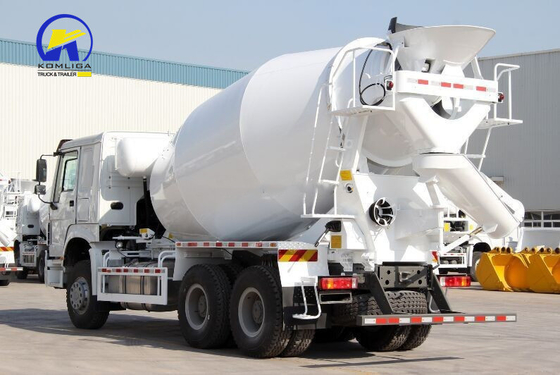

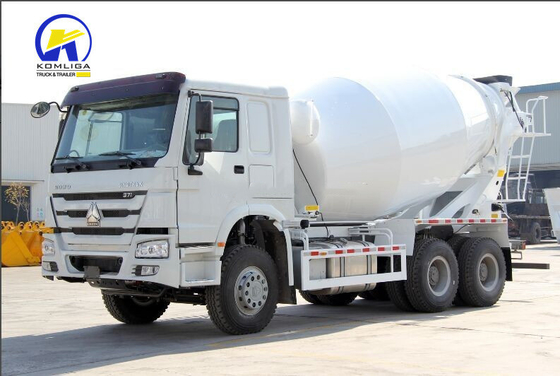

Shipping method for New Sinotruck howo 10cubic meters 6x4 Concrete Mixer Cement Truck for Africa:
Usually Our Truck can be shipped by Ro-ro ship or Bulk ship or Container or Flat rack.
Packing Detail: Ro-Ro or Bulk base on the ship and port in your country. If the truck on the deck,
we will spray antirust paint with free.
1. Q: What's your MOQ?
A: One unit trailer or truck.
2. Q: What is your lead time?
A: Usually it is 15-20 days after deposit received.
3. Q: What is the warranty of the trucks?
A: 12 months about engine, axle and transimission, some spare part can be 18 months. And we can help you solve every
problem about the truck by email and phone whole life.
4. Q: What's your payment terms?
A: T/T: 30% deposit by T/T,70% balance should be paid before shipment.
L/C: 100% irrevocable Credit of Letter.
5. Q:If Our Vehicle/Trailer Can Couple With Your Tractor Head ?
A:You can tell me that you are using the Tractor/Primer Mover model or the distance between fifth wheel and the ground,
we can design a height that matches your Tractor.
6. Q:If We Can Provide Terms For Reducing Your Import Duties ?
A:Yes, Please Contact With Us, We Are Nationalized Manufacture With Tax Reduction, Will Also Offer You The Best Way
For Import Duty Reduction.
7. Q: How about the after sales service?
A: We provide technical support and spare parts for long life time of our products.
