Product Details:
|
| Model NO.: | Semi Trailer | Tread: | 1820mm |
|---|---|---|---|
| Grade: | Heavy Duty | Types Of Suspension Systems: | Hydro-Pneumatic Suspension |
| Shape: | Flatbed | Axle Number: | 2 Axles, 3 Axles, 4 Axles |
| Tire Number: | 12 Units | Self-dumping: | Not Self-dumping |
| ABS Anti-lock Braking System: | ABS Anti-lock Braking System | Material: | Steel |
| Condition: | New | Trailer Model: | 3 Axles Flatbed Semi Trailer |
| Tare Weight: | Approx. 6.2 T | Dimension: | 12500*2500*1650mm |
| Loading Capacity: | 30-100t | Axle: | 13t/16t, Fuwa/BPW/Zy, Etc |
| Tire: | 12.00r22.5 ; 315/80r22.5; 11.00r20; 12.00r20 Brand | Suspension: | Mechanical Suspension |
| King Pin: | Jost Brand 2.0 Or 3.5 Inch | Spport Leg: | Jost Brand Two Speed |
| Main Beam: | Q345b Steel | Side Beam: | 16mm Channel Steel |
| ABS: | Optional | Valve: | Wabco Valve |
| Light: | LED Light | Tool Box: | One Piece 1m *0.5m*0.5m |
| Transport Package: | Nude | Specification: | 12500x2500x1650mm |
| Trademark: | SKL9401 | Origin: | China |
| HS Code: | 3708960665 | Supply Ability: | 500/Month |
| After-sales Service: | Techinical&Spare Parts Support | Warranty: | One Year |
| Type: | Semi-Trailer | Load Capacity: | 50T |
| Certification: | ECE, GCC, ISO9001 | Wheel Base: | 7000-8000mm |
| Customization: | Available | Customized Request |

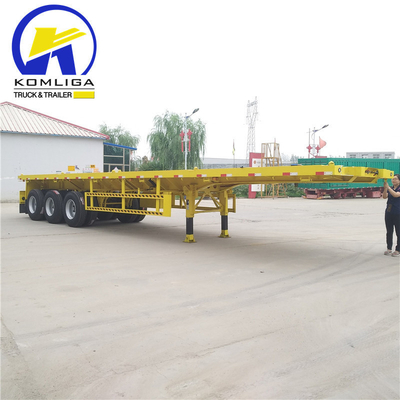

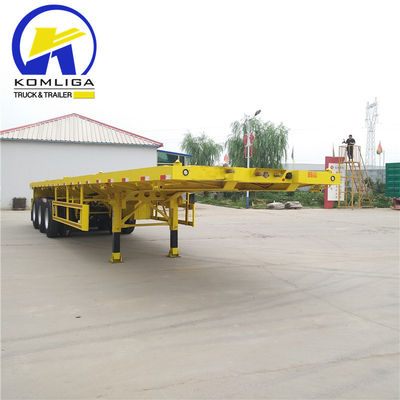

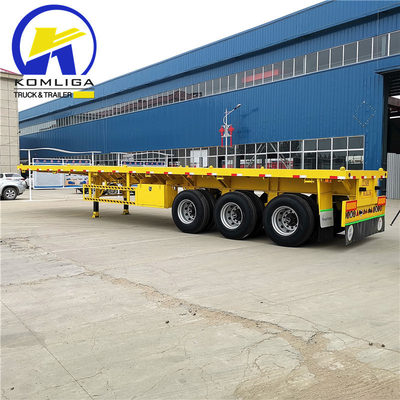

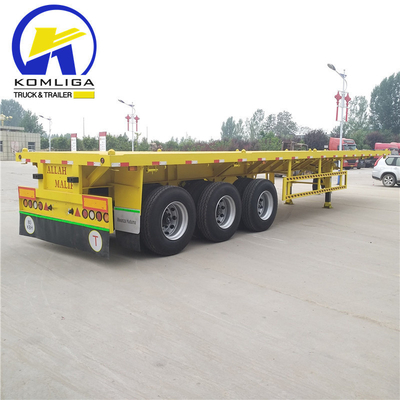

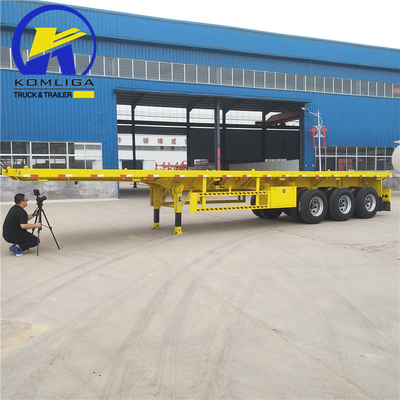

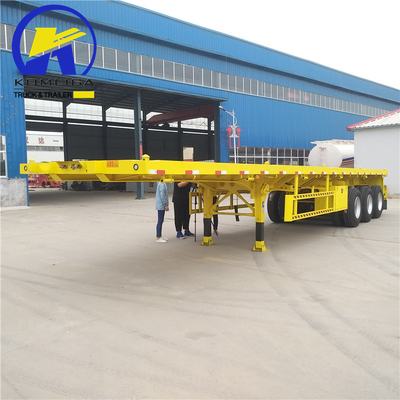

3axles Flatbed Container and Bulk Cargo Multi-Purpose Truck Semi Trailer
| 3axles Flatbed Container and Bulk Cargo Multi-Purpose Truck Semi Trailer | |
| Type | Flatbed semi trailer |
| Tare Weight | Approx. 6.2 T |
| Dimension | 12500*2500*1650mm |
| Loading Capacity | 30-100T |
| Axle | 13T/16T, FUWA/BPW/ZY, etc |
| Rim | 9.00*22.5/8.00-20/8.5-20 |
| Tire | 12.00R22.5 ; 315/80R22.5; 11.00R20; 12.00R20 brand can be optional |
| Suspension | Mechanical suspension(Germany type or America type) or Air suspension |
| Leaf Spring | 90(width)mm*13(thickness)mm*10 layer(especial for exporting market) |
| King pin | Jost brand 2.0 or 3.5 inch |
| Spport leg | Jost brand two speed |
| Main beam | Q345B steel |
| Side beam | 16mm channel steel (Material is Q235B steel) |
| Bottom Platform | 3mm checquered steel plate |
| Side wall | Optional |
| Brake chamber | Wabco re 6 relay valve; T30/30+T30 spring brake chamber; two units of 45L air tanks |
| ABS | Optional |
| Valve | Wabco valve (especial for exporting market) |
| Light | LED Light (especial for exporting market) |
| Voltage | 24V |
| Receptacle | 7 ways (7 wire harness) |
| Tool box | One piece 1m *0.5m*0.5m ( size can be customized) |
| Painting | 1 cost of anticorrosive primer, 2 coats of final paint, color advised by customer |
| Any parts fitted could according to clients request, contact us to get more. | |
Main products
1. Dump Truck / Tipper Truck
2. Howo tractor Truck/ prime mover truck
3. Truck with crane / Truck mounted crane
4. Oil Tank Truck / Fuel Tanker Truck
5. Water truck / Water Tank Truck / Water Sprinkler Truck
6. Concrete Mixer Truck
7. Van truck / Insulated truck/ Refrigeration truck
8. Fecal suction truck / Sewage suction truck
9. Cement Powder Tank truck/ Bulk cement trailer
10. High-altitude operation truck
11.Semi Trailer ( flat bed trailer / skeleton trailer / dump trailer / side wall trailer / low bed trailer / container trailer, etc. )
Shipping method for 3axles Flatbed Container and Bulk Cargo Multi-Purpose Truck Semi Trailer:
Usually Our trailer can be shipped by Ro-ro ship or Bulk ship or 40hc container ship.
Packing Detail: Ro-Ro or Bulk base on the ship and port in your country. If the truck on the deck,we will spray antirust paint with free.
1. Q: What's your MOQ?
A: One unit trailer or truck.
2. Q: What is your lead time?
A: Usually it is 15-20 days after deposit received.
3. Q: What is the warranty of the trucks?
A: 12 months about engine, axle and transimission, some spare part can be 18 months. And we can help you solve every problem about the truck by email and phone whole life.
4. Q: What's your payment terms?
A: T/T: 30% deposit by T/T,70% balance should be paid before shipment.
L/C: 100% irrevocable Credit of Letter.
5. Q:If Our Vehicle/Trailer Can Couple With Your Tractor Head ?
A:You can tell me that you are using the Tractor/Primer Mover model or the distance between fifth wheel and the ground, we can design a height that matches your Tractor.
6. Q:If We Can Provide Terms For Reducing Your Import Duties ?
A:Yes, Please Contact With Us, We Are Nationalized Manufacture With Tax Reduction, Will Also Offer You The Best Way For Import Duty Reduction.
7. Q: How about the after sales service?
A: We provide technical support and spare parts for long life time of our products.
