| Model NO.: | Semi Trailer | Tread: | 1820mm |
|---|---|---|---|
| Grade: | Heavy Duty | Types Of Suspension Systems: | Cross Arm Type |
| Shape: | Flatbed | Axle Number: | 3/4 Axles |
| Tire Number: | 12 | Self-dumping: | Not Self-dumping |
| ABS Anti-lock Braking System: | ABS Anti-lock Braking System | Material: | Steel |
| Condition: | New | Working Deck: | 9000X3000X1350mm |
| Platform Thickness: | 4mm | Main Beam: | Q345b Carbon Steel |
| Payload: | 40-100 Tons | Axle: | 13/16 Tons, Fuwa/BPW |
| Tire: | 1100r20, 12.00r20, 15/80/22.5 | Rim: | 9.0*22.5 / 8.0-20 / 8.5-20 |
| Suspension System: | Mechanical Suspension | Steel Spring: | 90 Mm(Width) * 13 Mm(Thickness) * 10 Layer |
| Brake Air Chamber: | 6 Units T30/30 | Valve: | Wabco Relay Valve |
| King Pin: | Jost 2.0 Or 3.5 Inch | Fire Extinguiser: | Two Pieces 4 Kgs |
| Spare Tire Carrier: | 2 Pieces | Light: | LED Light |
| Transport Package: | Nude | Specification: | 13000x2500x1700mm |
| Trademark: | KOMLIGA | Origin: | China |
| HS Code: | 87163910 | Supply Ability: | 500/Month |
| After-sales Service: | Techinical&Spare Parts Support | Warranty: | One Year |
| Type: | Semi-Trailer | Load Capacity: | 80T |
| Certification: | ECE, GCC, CE, ISO9001 | Wheel Base: | 7000-8000mm |
| Customization: | Available | Customized Request |

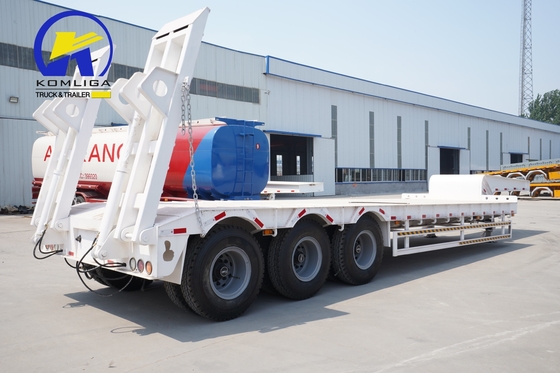

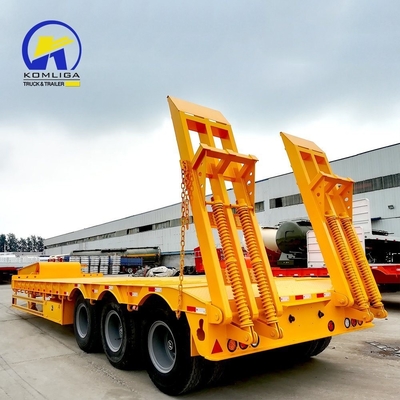

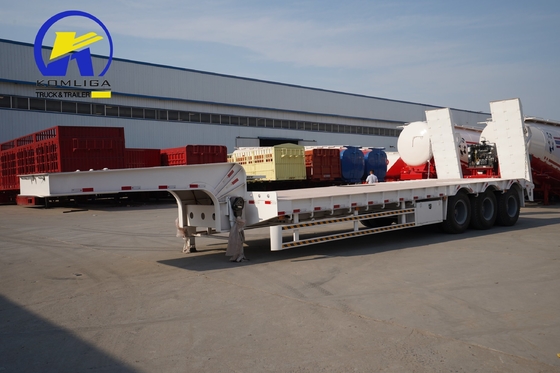

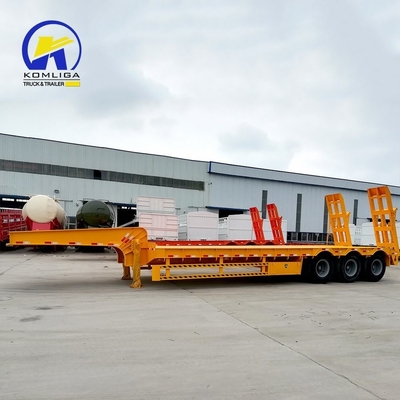

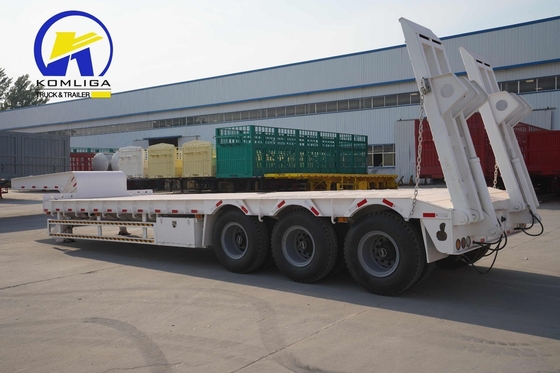

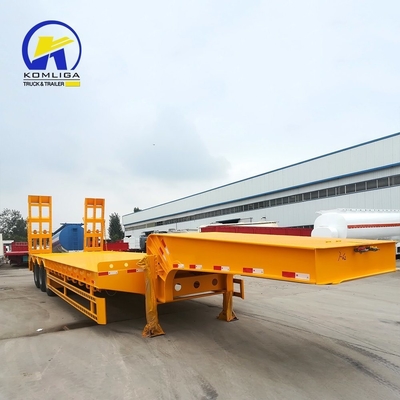

| New/Used 3 Axles 60ton 70ton Lowbed Semi Trailer | |
| Type | Lowbed semi trailer |
| Overall Dimension | 13000x3000x1650mm |
| Dimension | 9000*2500*1300 |
| Tare weight | Approx. 8000kgs-12800kgs |
| Capacity | 30 ton - 100 ton |
| Main beam | Height 450mm-520mm, upper plate is 14mm-25mm, middle plate is 14mm-25mm, down plate is 16mm-25mm, material is Q345B steel |
| Side beam | 16 mm- 25 mm channel steel (Material is Q235 steel) |
| Platform | 3 mm - 5 mm thickness chequered plate or can be optional |
| Gooseneck | For chosse |
| Ladder | Manual type or Hydraulic type |
| Axle | 13/16T, FUWA / BPW / SHENGRUN brand etc |
| King pin | Jost 2.0 or 3.5 inch bolted type |
| Suspension | Mechanical suspension / Germany type or America type / Air suspension |
| Leaf spring | 90 mm(Width) * 13 mm(Thickness) * 10 layer or 100 mm * 12 mm * 12 layer |
| Braking system | WABCO 6 relay valve, spring brake chamber, 2 pieces of 45L air tank |
| Rim | 9.0*22.5 / 8.0-20 / 8.5-20 |
| Tire | 12.00R22.5 ; 315/80R22.5; 11.00R20; 12.00R20 brand can be optional |
| ABS | Optional |
| Fire extinguiser | Two pieces 4 kgs |
| Spare tire carrier | 2 pieces |
| Safety guard | With standard |
| Painting | Complete chassis sand blasting to clean rust, 1 coat of anticorrosive primer, 2 coats of finla painting, Color advised by customer. |
| Accessories | One standard tool box |
| Light | LED light |
| Shipping terms | By bulk vessel or RORO or 40 HQ container |
Main products
1. Dump Truck / Tipper Truck
2. Howo tractor Truck/ prime mover truck
3. Truck with crane / Truck mounted crane
4. Oil Tank Truck / Fuel Tanker Truck
5. Water truck / Water Tank Truck / Water Sprinkler Truck
6. Concrete Mixer Truck
7. Van truck / Insulated truck/ Refrigeration truck
8. Fecal suction truck / Sewage suction truck
9. Cement Powder Tank truck/ Bulk cement trailer
10. High-altitude operation truck
11.Semi Trailer ( flat bed trailer / skeleton trailer / dump trailer / side wall trailer / low bed trailer / container trailer, etc. )
Shipping method for New/Used 3 Axles 60ton 70ton Lowbed Semi Trailer :
Usually Our lowbed trailer can be shipped by Ro-ro ship or Bulk ship or Container or Flat rack.
Packing Detail: Ro-Ro or Bulk base on the ship and port in your country. If the truck on the deck,we will spray antirust paint with free.
1. Q: What's your MOQ?
A: One unit trailer or truck.
2. Q: What is your lead time?
A: Usually it is 15-20 days after deposit received.
3. Q: What is the warranty of the trucks?
A: 12 months about engine, axle and transimission, some spare part can be 18 months. And we can help you solve
every problem about the truck by email and phone whole life.
4. Q: What's your payment terms?
A: T/T: 30% deposit by T/T,70% balance should be paid before shipment.
L/C: 100% irrevocable Credit of Letter.
5. Q:If Our Vehicle/Trailer Can Couple With Your Tractor Head ?
A:You can tell me that you are using the Tractor/Primer Mover model or the distance between fifth wheel and the ground,
we can design a height that matches your Tractor.
6. Q:If We Can Provide Terms For Reducing Your Import Duties ?
A:Yes, Please Contact With Us, We Are Nationalized Manufacture With Tax Reduction, Will Also Offer You The Best Way
For Import Duty Reduction.
7. Q: How about the after sales service?
A: We provide technical support and spare parts for long life time of our products.
