| Model NO.: | Car Carrier Trailer | Tread: | 1820mm |
|---|---|---|---|
| Grade: | Heavy Duty | Types Of Suspension Systems: | Cross Arm Type |
| Shape: | Flatbed | Axle Number: | 2 Axles |
| Tire Number: | 8 | Self-dumping: | Not Self-dumping |
| ABS Anti-lock Braking System: | ABS Anti-lock Braking System | Material: | Steel |
| Condition: | New | Working Deck: | 9000X3000X1350mm |
| Platform Thickness: | 4mm | Main Beam: | Q345b Carbon Steel |
| Payload: | 40-100 Tons | Axle: | 13/16 Tons, Fuwa/BPW |
| Tire: | 1100r20, 12.00r20, 15/80/22.5 | Rim: | 9.0*22.5 / 8.0-20 / 8.5-20 |
| Suspension System: | Mechanical Suspension | Steel Spring: | 90 Mm(Width) * 13 Mm(Thickness) * 10 Layer |
| Brake Air Chamber: | 6 Units T30/30 | Valve: | Wabco Relay Valve |
| King Pin: | Jost 2.0 Or 3.5 Inch | Fire Extinguiser: | Two Pieces 4 Kgs |
| Spare Tire Carrier: | 2 Pieces | Light: | LED Light |
| Transport Package: | Nude | Specification: | 13000x2500x1700mm |
| Trademark: | KOMLIGA | Origin: | China |
| HS Code: | 87163910 | Supply Ability: | 500/Month |
| After-sales Service: | Techinical&Spare Parts Support | Warranty: | One Year |
| Type: | Semi-Trailer | Load Capacity: | 80T |
| Certification: | ECE, GCC, CE, ISO9001 | Wheel Base: | 7000-8000mm |
| Customization: | Available | Customized Request |

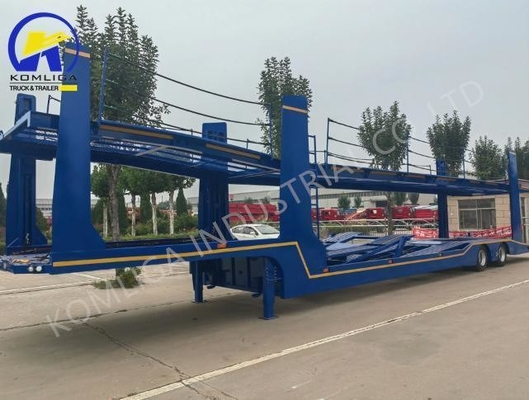

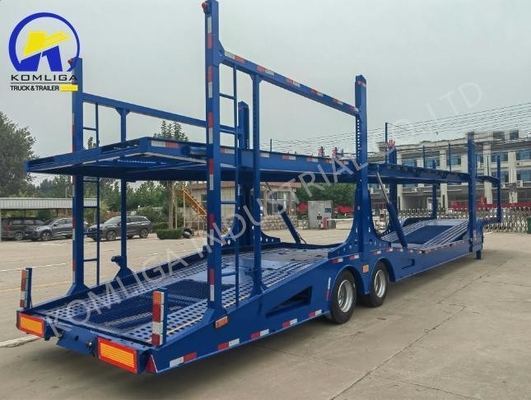

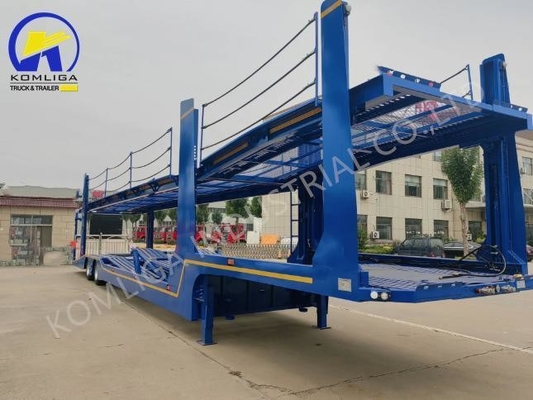

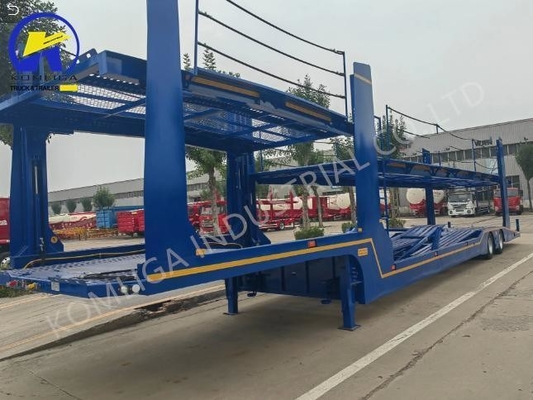

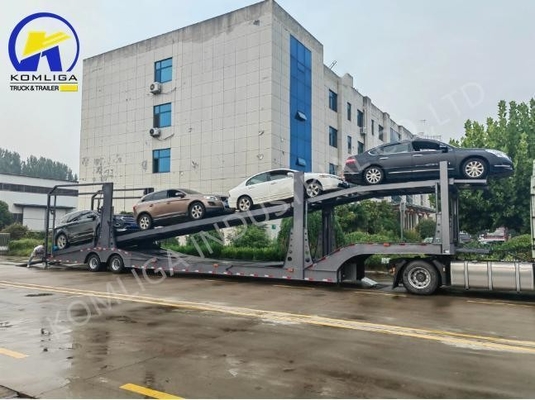

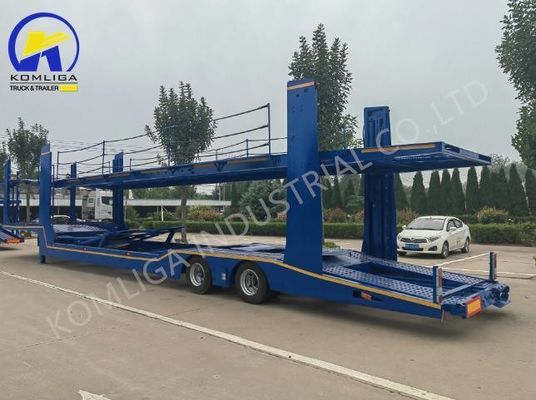

| Hydraulic Lifting 2 Axle 6-8 Units Transport Carrier Car Trailer | |
| Model Number | LAT9380TJZG |
| Name | Car transport semi trailer |
| Rated Load | 15000 kg |
| Tare Weight | 12000 kg |
| Wheel Base | 1310 +1310(mm) |
| Tyre Specifications | 1100R20/11R22.5/12R22.5/275/235 tyres |
| No. Of the Tyres | 4-12/single tyre/double tyre design |
| Axle Brand | FUWA |
| No. Of the Axles | single/2/3 axles |
| Axle-load | 13000 kg |
| King Pin | 50#/90# |
| Landing Leg | 2 |
| Pieces of leaf-spring | 10 |
| Suspension | Steel leaf spring suspension |
| Departure Angle | 14.5 |
| Front/Rear Overhang | 2120 mm |
| Outside Dimensions (LxWxH) | 18500X2500X3800 (mm)(Dimensions optional) |
| Material of the Main Beam | Q345B |
| Brake System | Dual line braking system /ABS |
| Brake Air Chamber | double chamber |
| Electrical | 24V 7 ways(7 wire harness) |
| Color | Any color will be available |
| Accessory | One tooling box with a set of standard trailer tool |
| Guarantee term | 1 year |
| Trailer Model | 2-axle sedan transport trailer |
| Model Number | LC9400 |
| Function | Transport 8-10 cars |
| Overall Dimension(Lx W x H)(mm) | 13750-25000mm*2600-3000mm*4000mm |
| Tare Weight(KG) | 7350kg |
| Loading Weight( KG) | 40000kg |
| Total Weight(KG) | 47350kg |
| Axle Brand | 2*13TON Axle FUWA Brand |
| Wheelbase(mm) | 7450+1310+1310 |
| Suspension system | Mechanical Leaf Spring Suspension |
| Leaf spring | 90(W)mm*13(Thick)mm*10 Layer |
| The material of Main beam | Q345B carbon steel,The height of the beam is 500 mm, upper plate is14mm,down plate is 16mm, middle plate is 8 mm. |
| Side beam | Q235 260 I-beams |
| Platform plate | Net cargo platform |
| Skip work | Take a pull and skip work |
| Tire Type and quantity | 235/75R17.5 8units |
| Rim | 6.75.00-17.5 8units |
| Traction Pin | 50" or 90" |
| Spare Wheel Bracket | 2 pieces |
| Tool Box | 1 Standard |
| Landing Gear | 28ton single action supporting legs |
| Brake system | Dual Line braking system |
| Brake air chamber | Six double chamber |
Main products
1. Dump Truck / Tipper Truck
2. Howo tractor Truck/ prime mover truck
3. Truck with crane / Truck mounted crane
4. Oil Tank Truck / Fuel Tanker Truck
5. Water truck / Water Tank Truck / Water Sprinkler Truck
6. Concrete Mixer Truck
7. Van truck / Insulated truck/ Refrigeration truck
8. Fecal suction truck / Sewage suction truck
9. Cement Powder Tank truck/ Bulk cement trailer
10. High-altitude operation truck
11.Semi Trailer ( flat bed trailer / skeleton trailer / dump trailer / side wall trailer / low bed trailer / container trailer, etc. )
Shipping method for Hydraulic Lifting 2 Axle 6-8 Units Transport Carrier Car Trailer :
Usually Our lowbed trailer can be shipped by Ro-ro ship or Bulk ship or Container or Flat rack.
Packing Detail: Ro-Ro or Bulk base on the ship and port in your country. If the truck on the deck,we will spray antirust paint with free.
1. Q: What's your MOQ?
A: One unit trailer or truck.
2. Q: What is your lead time?
A: Usually it is 15-20 days after deposit received.
3. Q: What is the warranty of the trucks?
A: 12 months about engine, axle and transimission, some spare part can be 18 months. And we can help you solve
every problem about the truck by email and phone whole life.
4. Q: What's your payment terms?
A: T/T: 30% deposit by T/T,70% balance should be paid before shipment.
L/C: 100% irrevocable Credit of Letter.
5. Q:If Our Vehicle/Trailer Can Couple With Your Tractor Head ?
A:You can tell me that you are using the Tractor/Primer Mover model or the distance between fifth wheel and the ground,
we can design a height that matches your Tractor.
6. Q:If We Can Provide Terms For Reducing Your Import Duties ?
A:Yes, Please Contact With Us, We Are Nationalized Manufacture With Tax Reduction, Will Also Offer You The Best Way
For Import Duty Reduction.
7. Q: How about the after sales service?
A: We provide technical support and spare parts for long life time of our products.
