| Model NO.: | Coach Bus | Engine Capacity: | >8L |
|---|---|---|---|
| Fuel: | Diesel | Seats: | 31-50 |
| Size: | Medium | Structure: | Double-Deck |
| Condition: | New | Transport Package: | Nude |
| Specification: | 8500*2500*3400mm | Trademark: | AK |
| Origin: | China | Supply Ability: | 500/Month |
| After-sales Service: | Techinical&Spare Parts Support | Warranty: | One Year |
| Style: | Sitting | Emission Standard: | Euro 2 |
| Certificate: | ISO9001, CCC | Transmission Type: | Manual |
| Customization: | Available | Customized Request |
| Vehicle parameters | |||
BUS MODEL | C12PRO | Seat capacity | 51+1+1(2+3 Layout) |
| Dimensions(mm) | 12000×2550×3860 | Kerb weight(kg) | 6000 |
| Approach / departure angle(º) | 17/12 | GVM(kg) | 8500 |
| Wheelbase(mm) | 3800 | Max. Speed(km/h) | 100 |
| F/R overhang(mm) | 1220/2640 | Oil tank capacity(L) | 115 |
| Chassis configuration | |||
| Engine model | YC4D140-20 | ||
| Engine position,fuel,type | Front engine, diesel,4 cyclinders in line, four stroke, water cooling, supercharged and midcooling | ||
| Emission standard | Euro II | ||
| Displacement(L) | 4.214 | ||
| Maximum power(kw/rpm) | 103/2800 (140HP) | ||
| Maximum torque(N.m/rpm) | 420/1600-1900 | ||
| Transmission | 5DS50T(Manual) | ||
| Clutch | Domestic | ||
| Suspension system | Leaf spring | ||
| Front axle | JAC 3.0t /Disc brakes | ||
| Rear axle | JAC 6.5t /Drum brakes | ||
| ABS | With ABS | ||
| Steering system | Domestic power streering | ||
| Tires | 8.25R16 /7 Bars, Stainless Wheel Covers | ||
| Main body configuration | |||
| body structure | Semi-Monocoque | ||
| Air conditioning | Songzhi overhead air conditioning,, 15000Kcal/h | ||
| Luggage compartment | Manual flip door,one rear compartment and three side compartment | ||
| Floor leather | BY20-218-6 Non-slip floor leather | ||
| Video | Hard disk player | ||
| TV | One 17 inch LCD | ||
| Driver/Guide seat | Domestic driver seat, air suspension, with three point seatbelt | ||

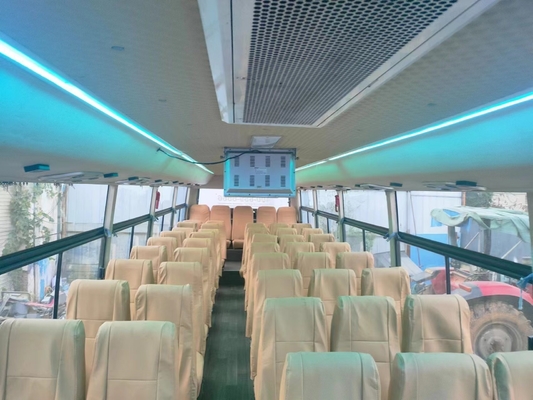

| Passenger seat | 60 seats, high backrest, backrest adjustable, two point seatbelt | ||
| Rear view mirror | Whole manual type | ||
| Dashboard | Domestic instrument | ||
| Paint | Domestic pure paint | ||
| Emergency top hatch | One top hatch with ventilation fan | ||

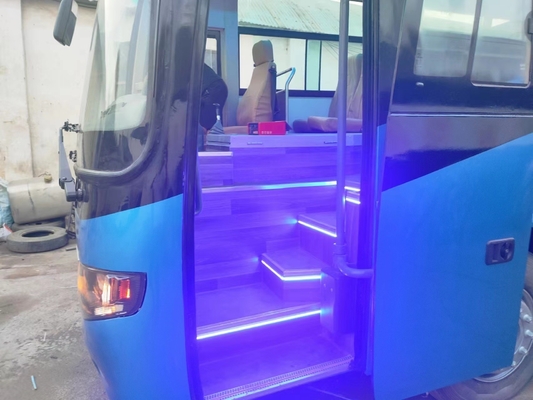

| Passenger door | Middle door, auto folding passenger door | ||
| Front windshield | Laminated glass with sunshade | ||
| Rear window | Tempered glass | ||
| Side windows | Side sliding window tempered glass, folding curtains | ||
| Others | Electronic clock, one spare tires, one 4 kg fire extinguishers, first aid kit, | ||
1. Q: What's your MOQ?
A: One unit trailer or truck.
2. Q: What is your lead time?
A: Usually it is 15-20 days after deposit received.
3. Q: What is the warranty of the trucks?
A: 12 months about engine, axle and transimission, some spare part can be 18 months. And we can help you solve every problem about the truck by email and phone whole life.
4. Q: What's your payment terms?
A: T/T: 30% deposit by T/T,70% balance should be paid before shipment.
L/C: 100% irrevocable Credit of Letter.
5. Q:If Our Vehicle/Trailer Can Couple With Your Tractor Head ?
A:You can tell me that you are using the Tractor/Primer Mover model or the distance between fifth wheel and the ground, we can design a height that matches your Tractor.
6. Q:If We Can Provide Terms For Reducing Your Import Duties ?
A:Yes, Please Contact With Us, We Are Nationalized Manufacture With Tax Reduction, Will Also Offer You The Best Way For Import Duty Reduction.
7. Q: How about the after sales service?
A: We provide technical support and spare parts for long life time of our products.
