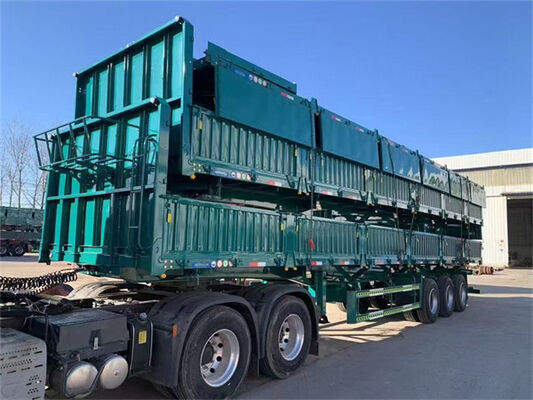

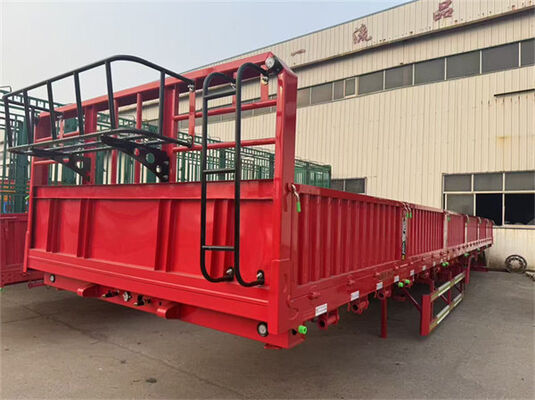

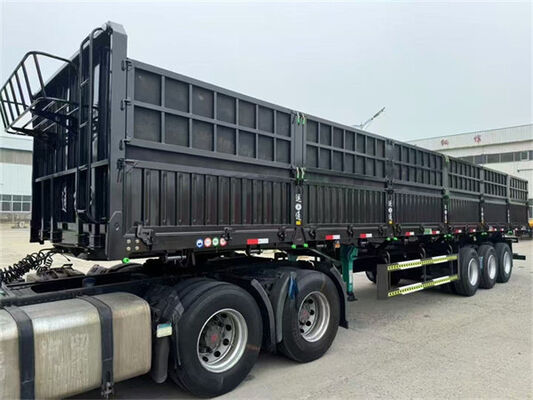

Removable And Adjustable Side Panels Flatbed Semi Truck Trailer 2/3/4 Axles With Sides
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Model: | Flatbed Semi-Trailer With Sides | Primary Application: | Transport Of Bulk Goods, Packaged Materials, And Construction Supplies (grain, Coal, Sand, Appliances, Furniture, Cartons). |
|---|---|---|---|
| Load Capacity: | 40 To 100-ton Payload Capacity With A Lightweight 5-8-ton Tare Weight For Exceptional Transport Efficiency. | Suspension System: | Standard Mechanical Suspension; Air Suspension Optional For Smoother Ride And Enhanced Cargo Protection. |
| Axle Configuration: | Standard Fuwa 13T Axles; Customizable With 2, 3, Or 4 Axles For Optimal Weight Distribution And Road Legality. | Maximum Load Capacity: | > 30,000 Kg |
| Highlight: | removable flatbed semi truck trailer,removable semi truck flatbed trailer,adjustable flatbed semi truck trailer |
||
Stake-Side Semi-Trailer
Flatbed Semi-Trailer with Sides
| Category | Specification |
|---|---|
| Type | Semi-trailer |
| Maximum Load Capacity | >30,000 kg |
| Brand | Shandong Yuntong Machinery Manufacturing Co., Ltd., China |
| Place of Origin | Shandong, China |
| Suitable Vehicle Type | Truck tractor |
| Material | High-strength steel |
| Dimensions | Customizable |
| Product Name | Flatbed Semi-Trailer with Sides |
| Axles | 2/3/4 axles (customizable) |
| Function | Cargo transportation |
| Suspension | Mechanical suspension or air suspension |
| Kingpin | 90# / 50# |
| Tires | 12.00R22.5 |
| Condition | Brand new |
| Paint | Polyurethane paint (optional) |
Detailed Specifications Table
| Parameter | Specification |
|---|---|
| Overall Dimensions | 12400mm * 2495mm * 2920mm (customizable) |
| Cargo Bed Dimensions | 12280mm * 2300mm * 600mm (customizable) |
| Tare Weight | 5 tons - 8 tons |
| Payload Capacity | 40 tons - 100 tons |
| Axles | Fuwa 13-ton * 3 units |
| Suspension | Mechanical suspension or air suspension |
| Leaf Springs | 10 * 90mm * 13mm, 6 pieces |
| Wheelbase | 7500+1310+1310 |
| Floor Thickness | 3 mm |
| Side Rails | 800 + 150 + 450; Base plate: 1.2mm (customizable) |
| Tires | 12R22.5, 13 pieces (customizable) |
| Rims | 9.0-22.5, 13 pieces |
| Spare Tire Bracket | 1 piece |
| Toolbox | 1 piece |
| Painting Process | Complete chassis sandblasting & rust removal, one layer of anti-corrosion primer, two layers of topcoat |
| Accessories | One rocking handle, one axle wrench |
| Color | Customizable |
Primary Use
The core purpose is to transport various types of bulk, crated, or bundled general cargo, and it is suitable for scenarios requiring flexible loading space. Its removable and height-adjustable side panels and high rail structure allow it to carry bulk materials such as grain, coal, and sand, as well as goods like home appliances, furniture, building materials, and cartoned items.
