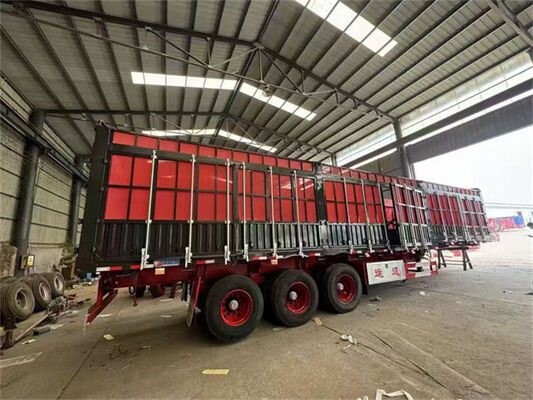

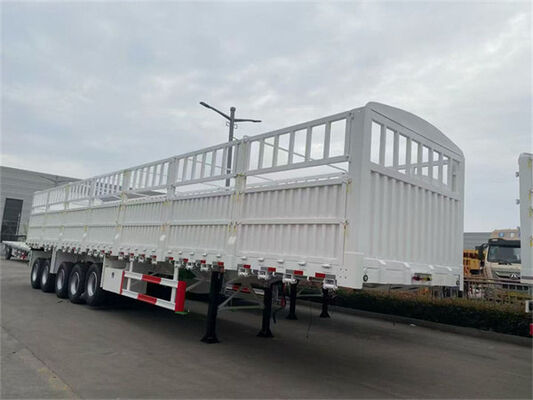

2/3/4 Axles Stake Side Semi Trailer Flat Bed Transport Of Bulk Goods
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Model: | Flatbed Semi-Trailer With Sides | Primary Application: | Transport Of Bulk Goods, Packaged Materials, And Construction Supplies (grain, Coal, Sand, Appliances, Furniture, Cartons). |
|---|---|---|---|
| Load Capacity: | 40 To 100-ton Payload Capacity With A Lightweight 5-8-ton Tare Weight For Exceptional Transport Efficiency. | Suspension System: | Standard Mechanical Suspension; Air Suspension Optional For Smoother Ride And Enhanced Cargo Protection. |
| Axle Configuration: | Standard Fuwa 13T Axles; Customizable With 2, 3, Or 4 Axles For Optimal Weight Distribution And Road Legality. | Maximum Load Capacity: | > 30,000 Kg |
| Highlight: | semi trailer flat bed transport,stake side semi trailer flat bed,transport semi bed trailer |
||
Stake-Side Semi-Trailer
Type: Semi-trailer
Maximum Load Capacity: > 30000 kg
Brand: Shandong Yuntong Machinery Manufacturing Co., Ltd., China
Origin: Shandong, China
Compatible Vehicles: Truck trailers
Material: High-strength steel
Dimensions: Customizable
Product Name: Stake-Side Semi-Trailer
Axles: 2/3/4 axles, customizable according to customer requirements
Function: Cargo transportation
Suspension: Mechanical suspension or air suspension
Kingpin: 90#/50#
Tires: 12.00R22.5
Condition: Brand new
Painting: Polyurethane paint optional
Detailed Specifications Table
| Parameter | Specification |
|---|---|
| Overall Dimensions | 12400mm * 2495mm * 2920mm (customizable) |
| Cargo Bed Dimensions | 12280mm * 2300mm * 600mm (customizable) |
| Tare Weight | 5 tons - 8 tons |
| Payload Capacity | 40 tons - 100 tons |
| Axles | Fuwa 13-ton * 3 units |
| Suspension | Mechanical suspension or air suspension |
| Leaf Springs | 10 * 90mm * 13mm, 6 pieces |
| Wheelbase | 7500+1310+1310 |
| Floor Thickness | 3 mm |
| Side Rails | 800 + 150 + 450; Base plate: 1.2mm (customizable) |
| Tires | 12R22.5, 13 pieces (customizable) |
| Rims | 9.0-22.5, 13 pieces |
| Spare Tire Bracket | 1 piece |
| Toolbox | 1 piece |
| Painting Process | Complete chassis sandblasting & rust removal, one layer of anti-corrosion primer, two layers of topcoat |
| Accessories | One rocking handle, one axle wrench |
| Color | Customizable |
Usage: The core purpose is to transport various bulk, boxed, or bundled general cargo, and it is suitable for scenarios with certain requirements for loading space. Its stake-side and high-side structure can be flexibly disassembled and adjusted in height, and it can transport bulk materials such as grain, coal, sand and gravel, as well as home appliances, furniture, building materials, and carton goods.
